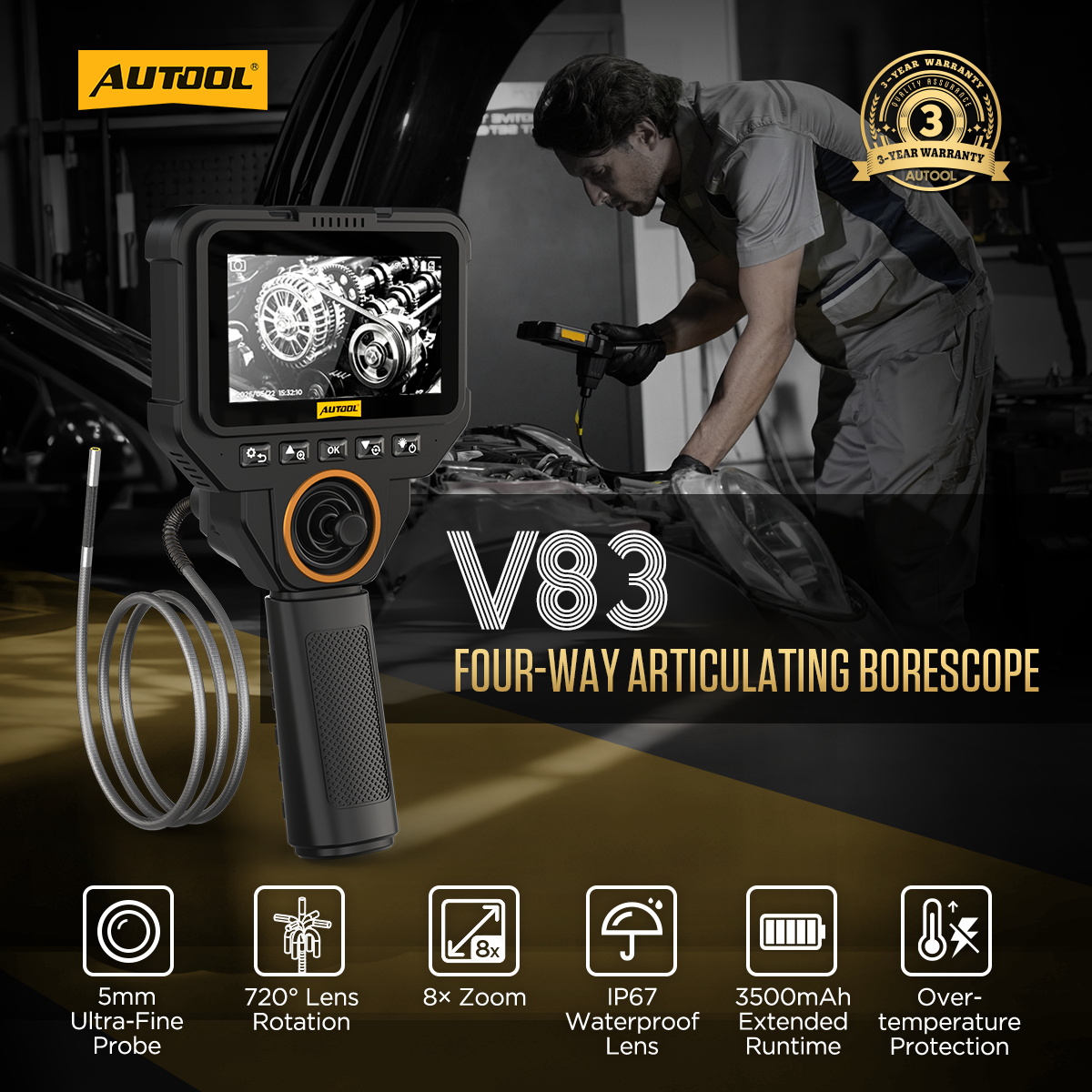

V83 720° Articulating Borescope – Ø5mm lens
No app required. Featuring an ultra-slim 5 mm (0.2 in) probe and a 4.3" HD color screen, the V83 delivers instant inspection right out of the box. The lens provides 720° panoramic viewing and 210° articulation, offering flexible access into tight, curved spaces like engine cylinders, evaporators, combustion chambers, exhaust pipes, wall cavities, and HVAC ducts. With a 1MP camera and 8x digital zoom, it helps you quickly detect critical issues such as corrosion, blockages, and cracks—without engine disassembly or part damage.
AUTOOL V83 Four-Way Articulating Borescope Features

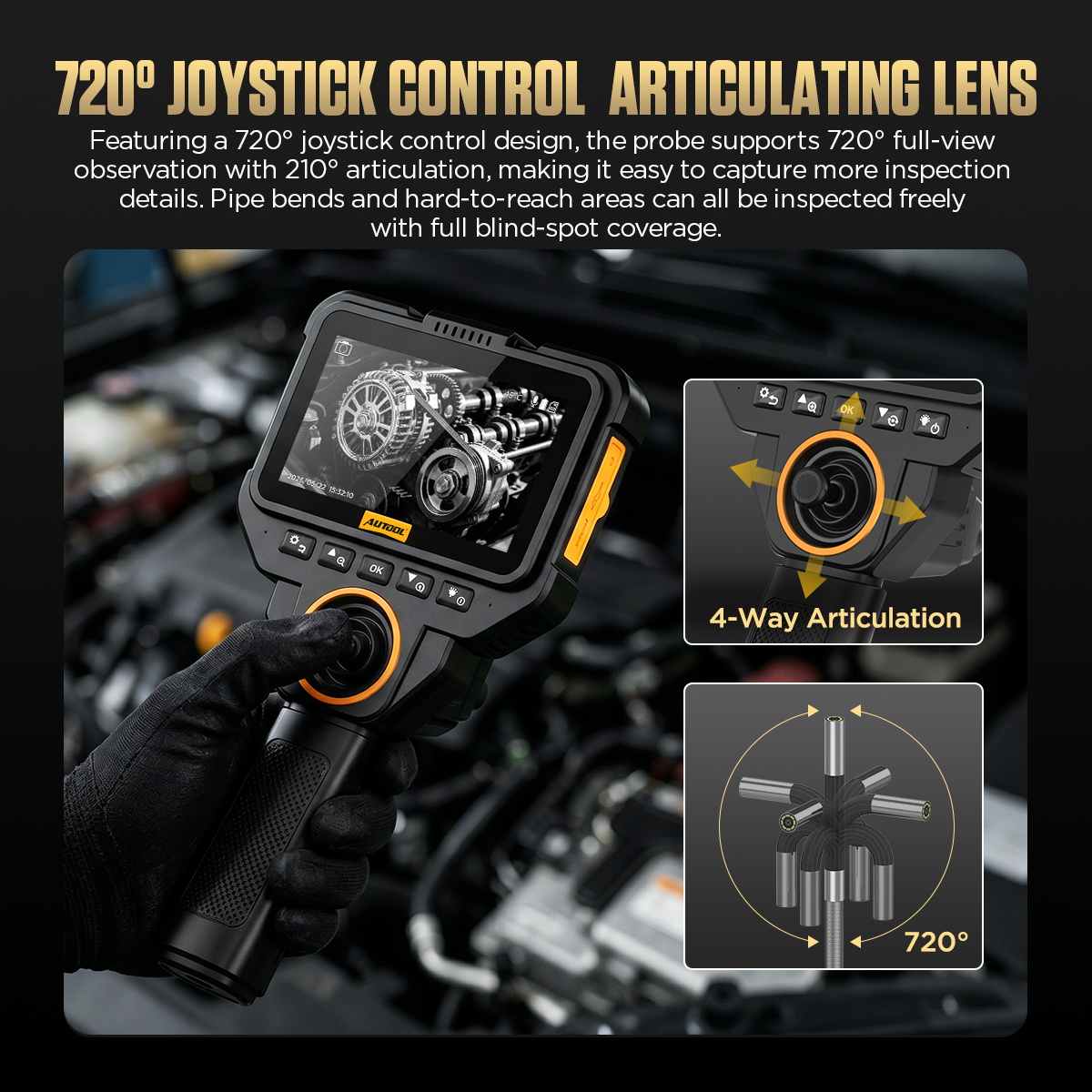

720° Joystick Control: The probe achieves 720° panoramic viewing and 210° articulation, easily reaching narrow, confined spaces like spark plug holes and pipe gaps for non-destructive inspection with minimal disassembly.

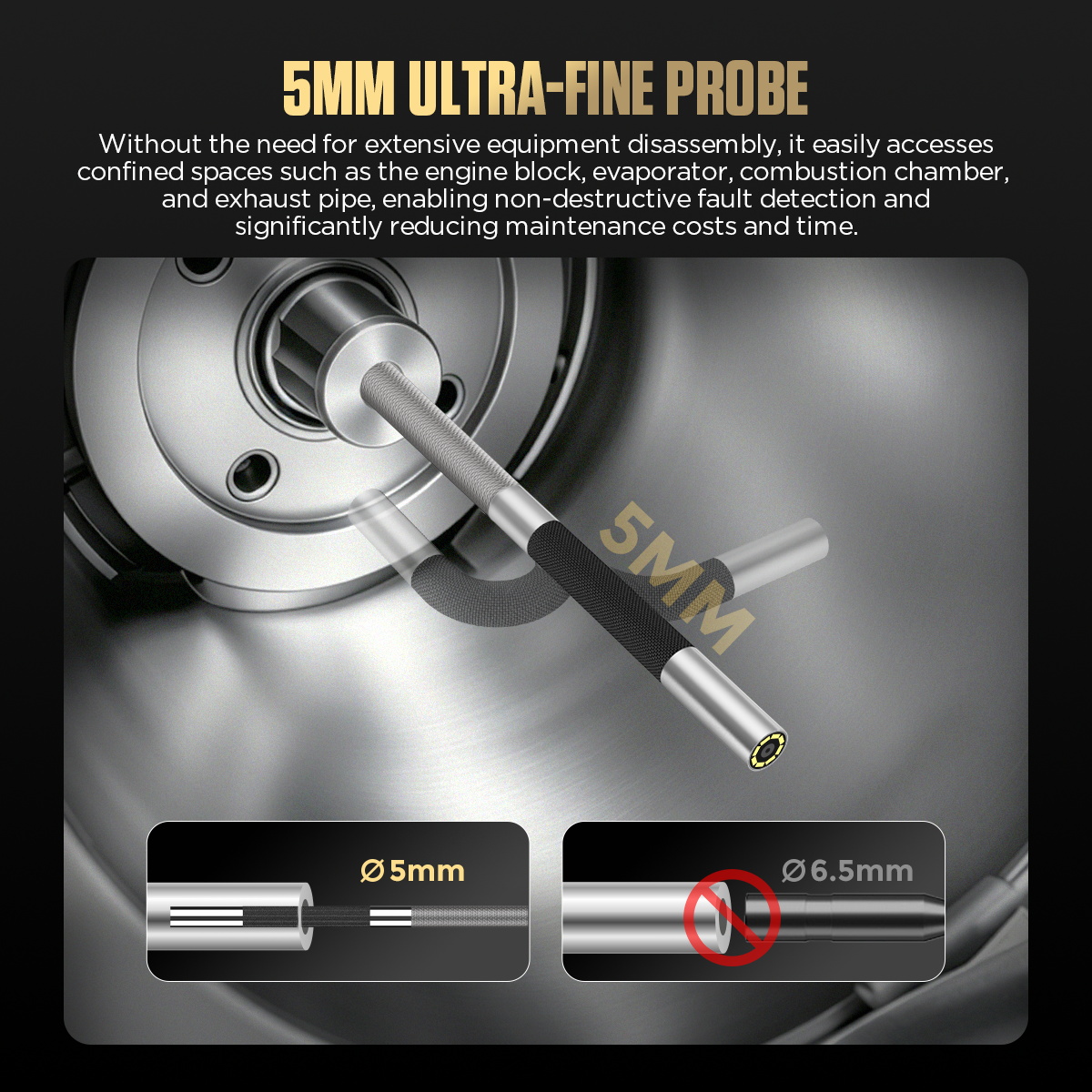

Ultra-Slim 5 mm (0.2 in) Probe: Solves the inspection challenges of traditional large-diameter probes that can't enter, turn, or see. View internal carbon buildup, wear, cracks, and foreign objects quickly without extensive disassembly.

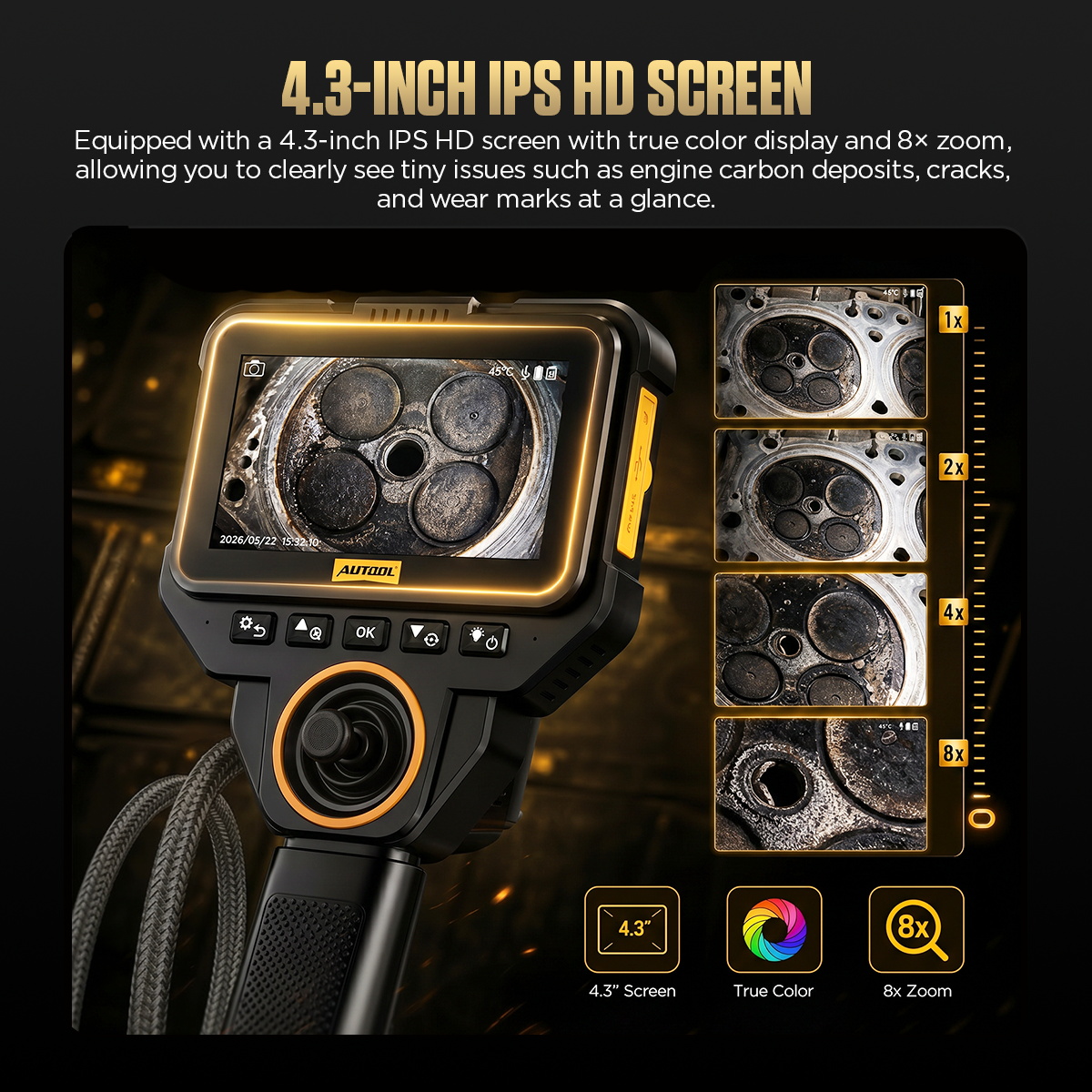

4.3" IPS HD Screen: True-to-life color reproduction with sharp, clear details. Supports 8x magnification for step-by-step zooming and focusing.

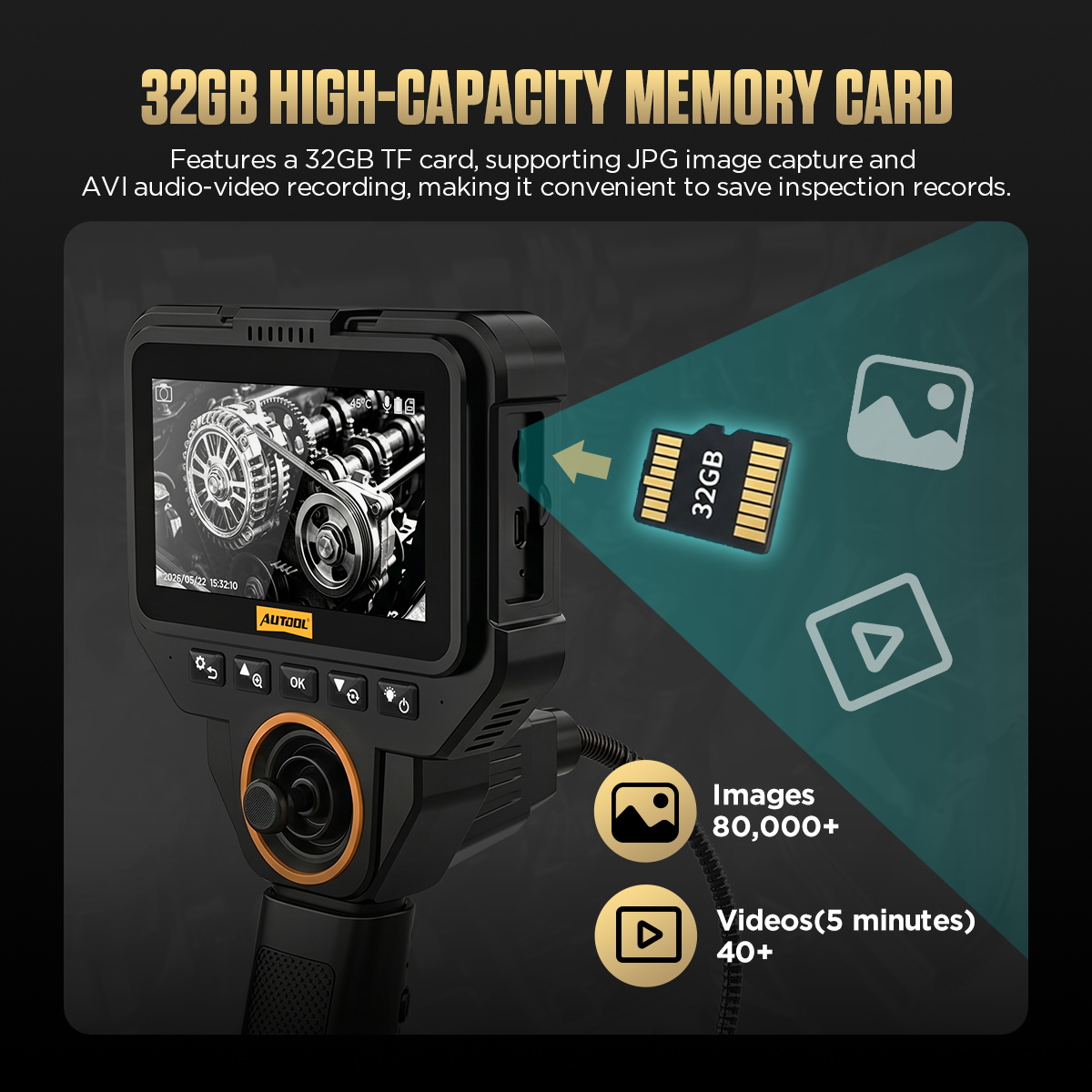

32GB TF Storage Card: Supports JPG photo capture and AVI audio/video recording for easy documentation and review.
IP67 Waterproof & Dustproof Lens: Excellent water, dust, and oil resistance, built to handle damp, submerged, or greasy environments with ease.
14-Language Menu: Simplified Chinese, Traditional Chinese, Spanish, French, German, Czech, Portuguese, Japanese, English, Korean, Russian, Dutch, Turkish, and Polish.
6 Adjustable LED Lights: Three-level brightness adjustment ensures clear imaging even in dark environments like engine bays or pipes.
Overheat Protection: Auto power-off above 85°C (185°F) when probing hot components like engines or exhaust systems, preventing equipment damage and enhancing safety.

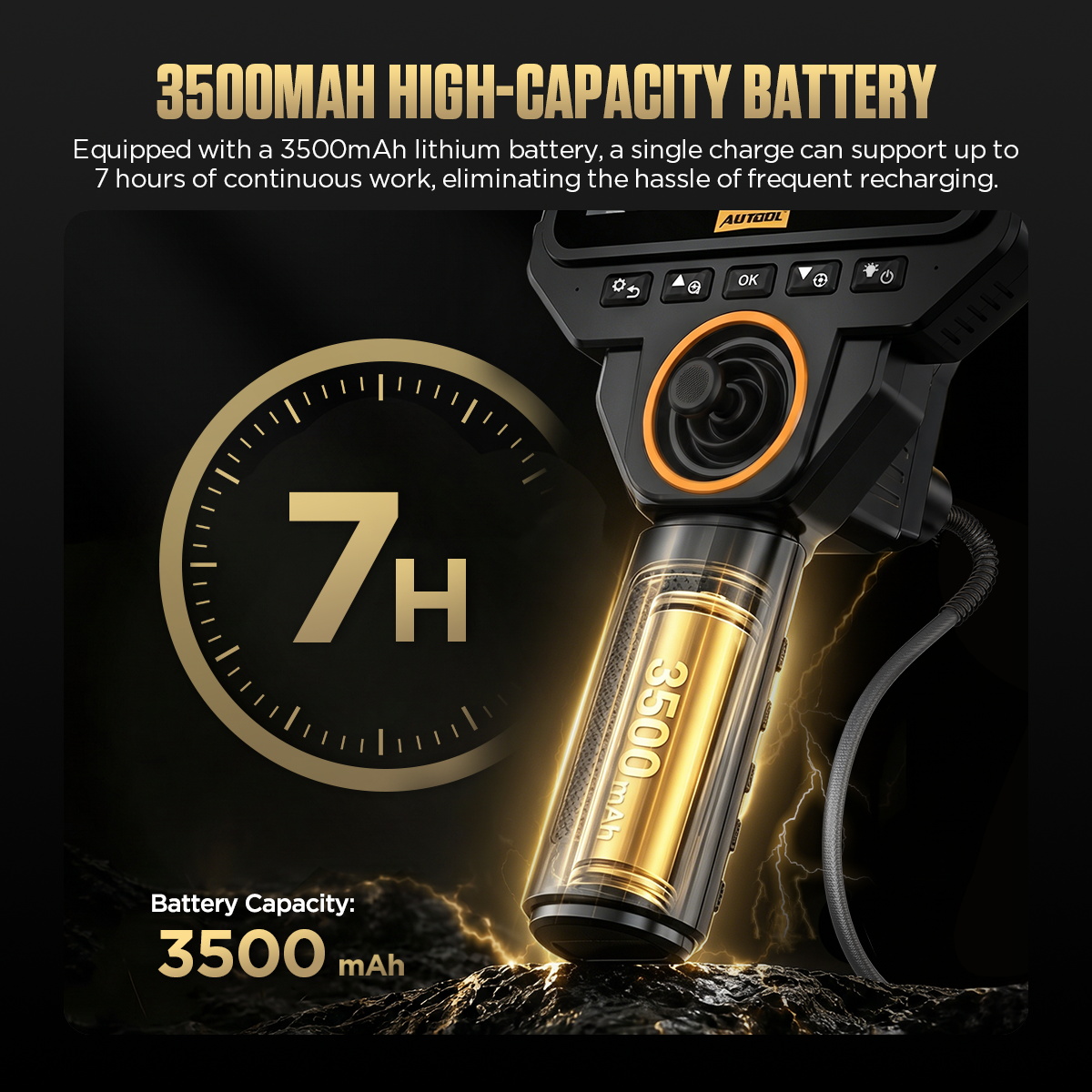

7-Hour Battery Life: Built-in 3500mAh high-capacity battery supports all-day operation on a single charge.
Magnetic Base: Built-in strong magnet attaches directly to ferrous vehicle or equipment parts for hands-free operation, freeing your hands to focus on the job and improving repair efficiency.
Multi-Scene Application: Widely used in automotive inspection, machinery inspection, appliance inspection, circuit maintenance, pipeline inspection, and HVAC inspection.

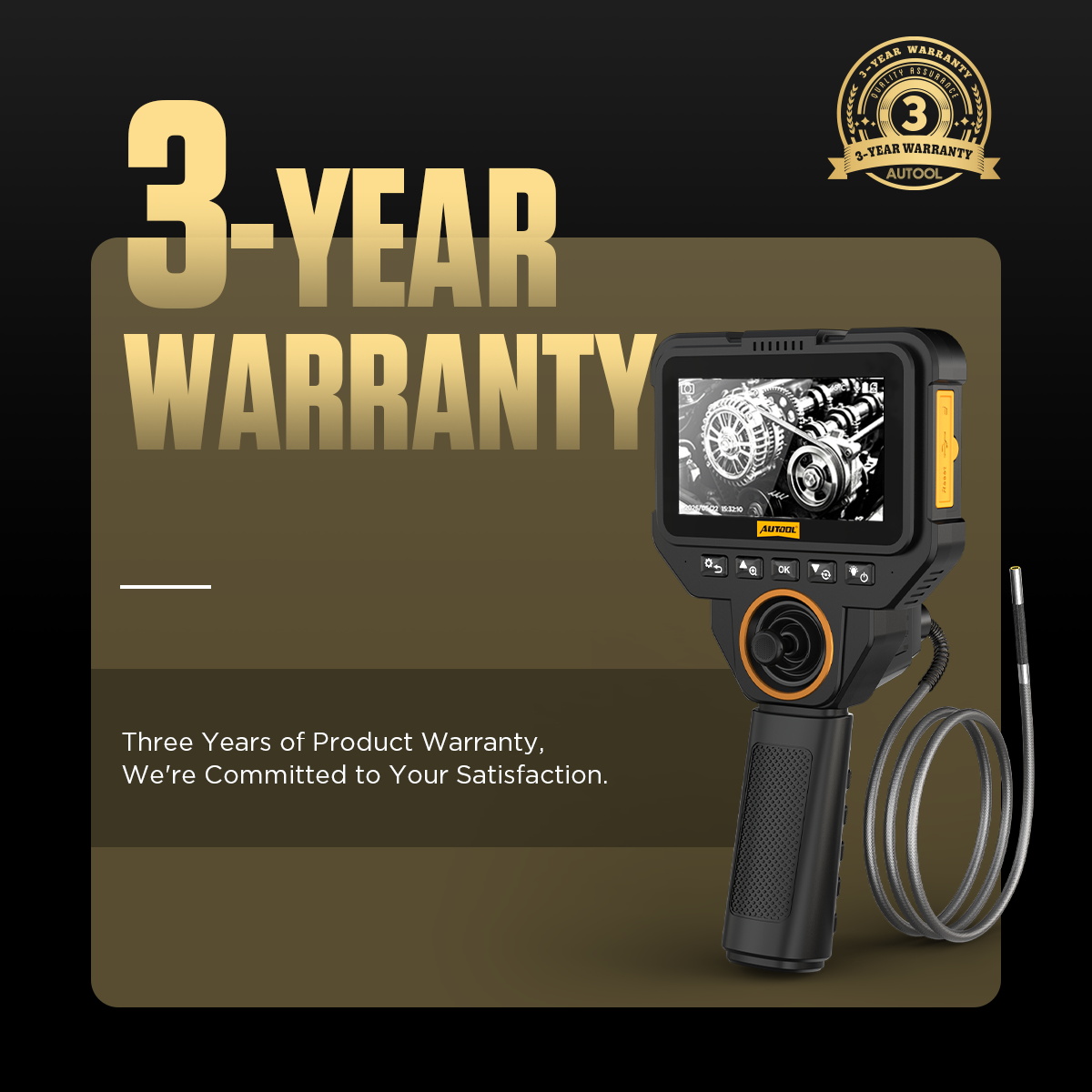

3-Year Warranty: For non-human-induced equipment damage, AUTOOL guarantees free replacement parts within three years. If you have any questions, please feel free to contact us—we will respond within 24 hours. We are committed to being responsible for our products, our customers, and our partners.
| V83 | |
| Display screen | 4.3 inches |
| Camera resolution | 1280×720P |
| Memory card | 32GB |
| Articulation radius | Approximately 32 mm (1.26 in) |
| Articulation lifespan | Approximately 20,000 cycles |
| Articulation angle | Four-way |
| Flexible hose material | Stainless steel braided flexible hose |
| Flexible hose length | 1 m (3.3 ft) |
| Lens diameter | 5 mm (0.2 in) |
| Image sensor | 1/9”CMOS |
| Resolution | 1 Megapixel |
| Viewing angle | 90° |
| Depth of field | 15~100 mm (3.94 in) |
| Lens overtemperature protection | The device will automatically shut down when the temperature exceeds 85℃. |
| Adjustable LED lights | 8 |
| Lens waterproof rating | IP67 |
| Battery capacity | 3.7V/3500mAh |
| Charging voltage | DC 5V*1A |
