TCA505 / TCA506 Tilt-Back Assist Arm Tire Changer Series

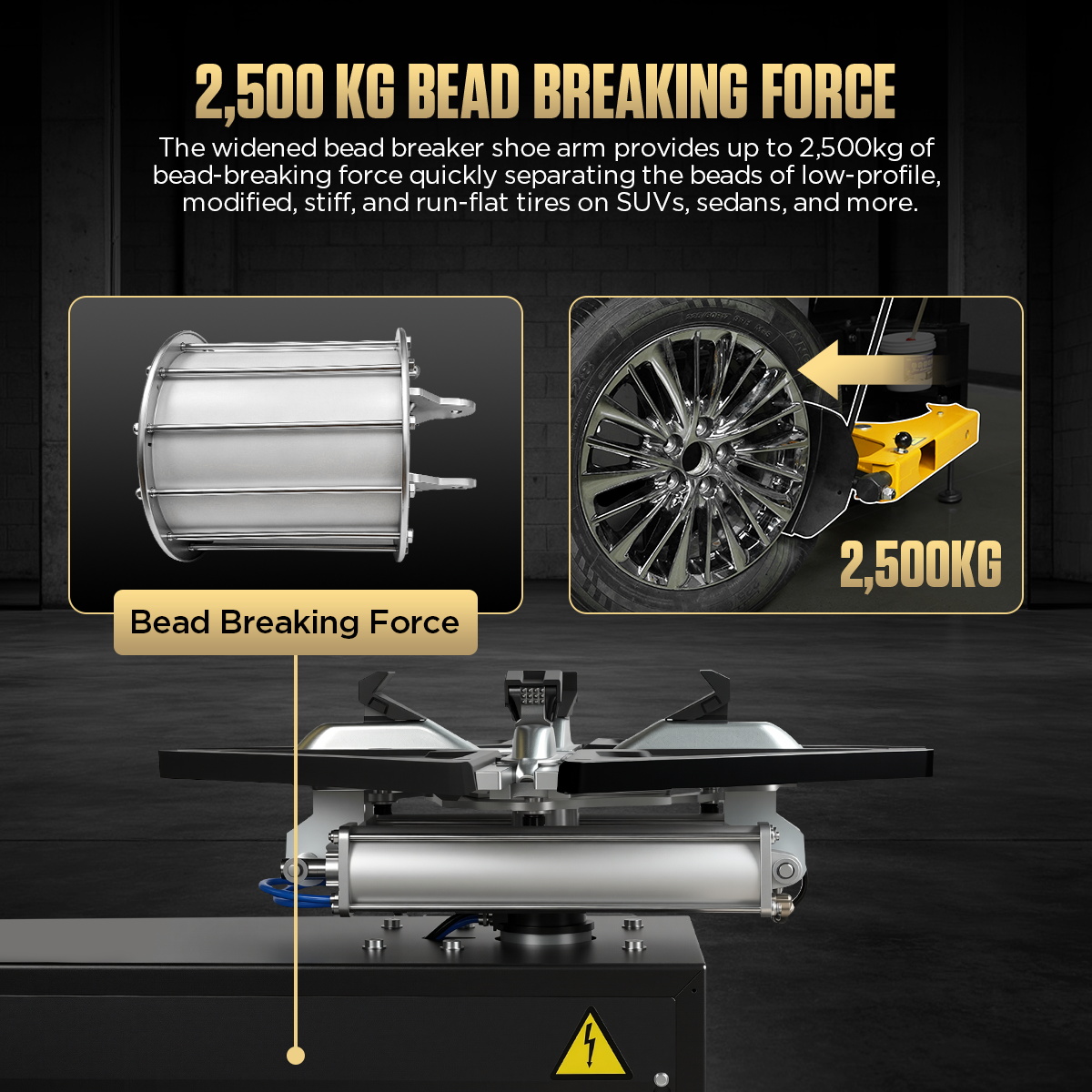

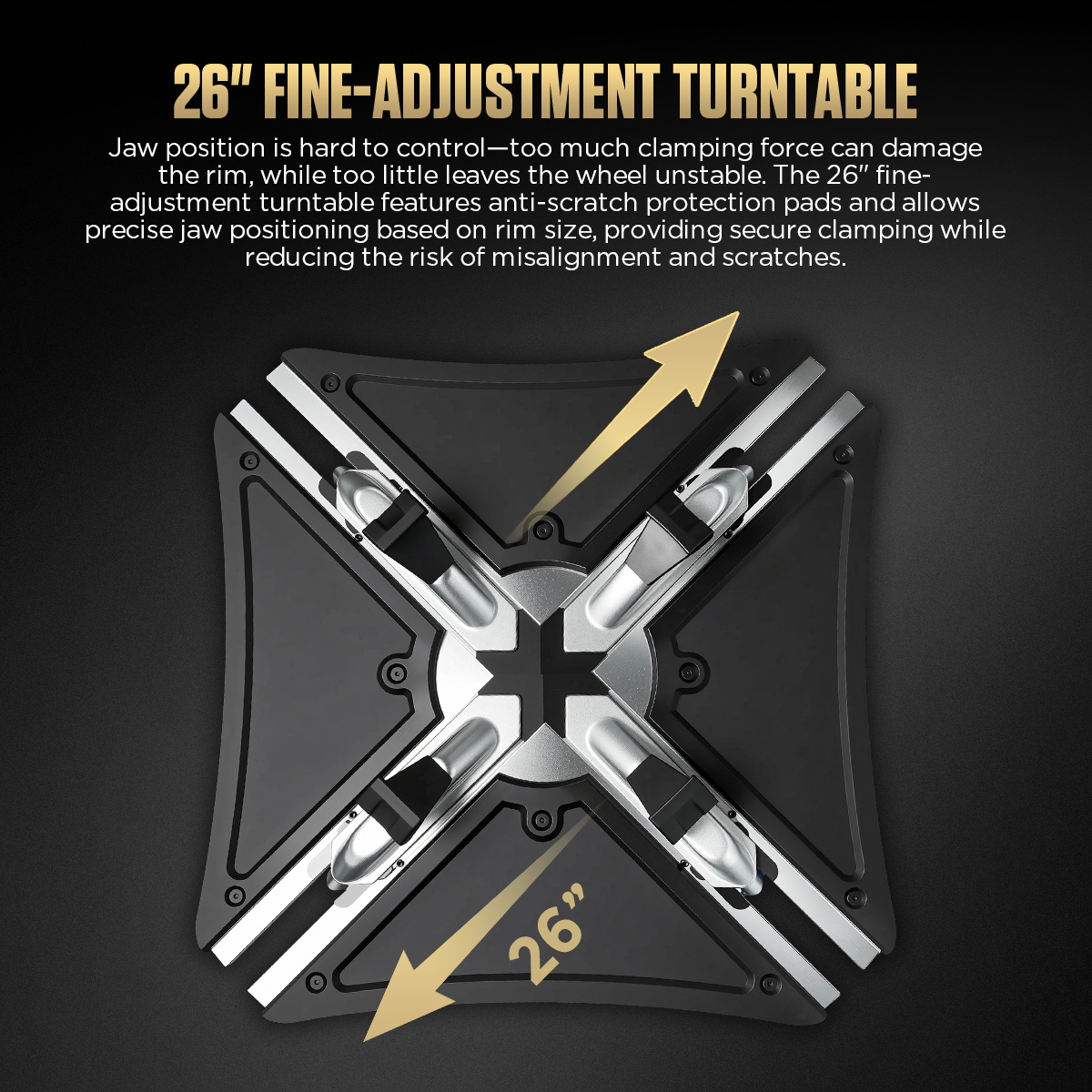

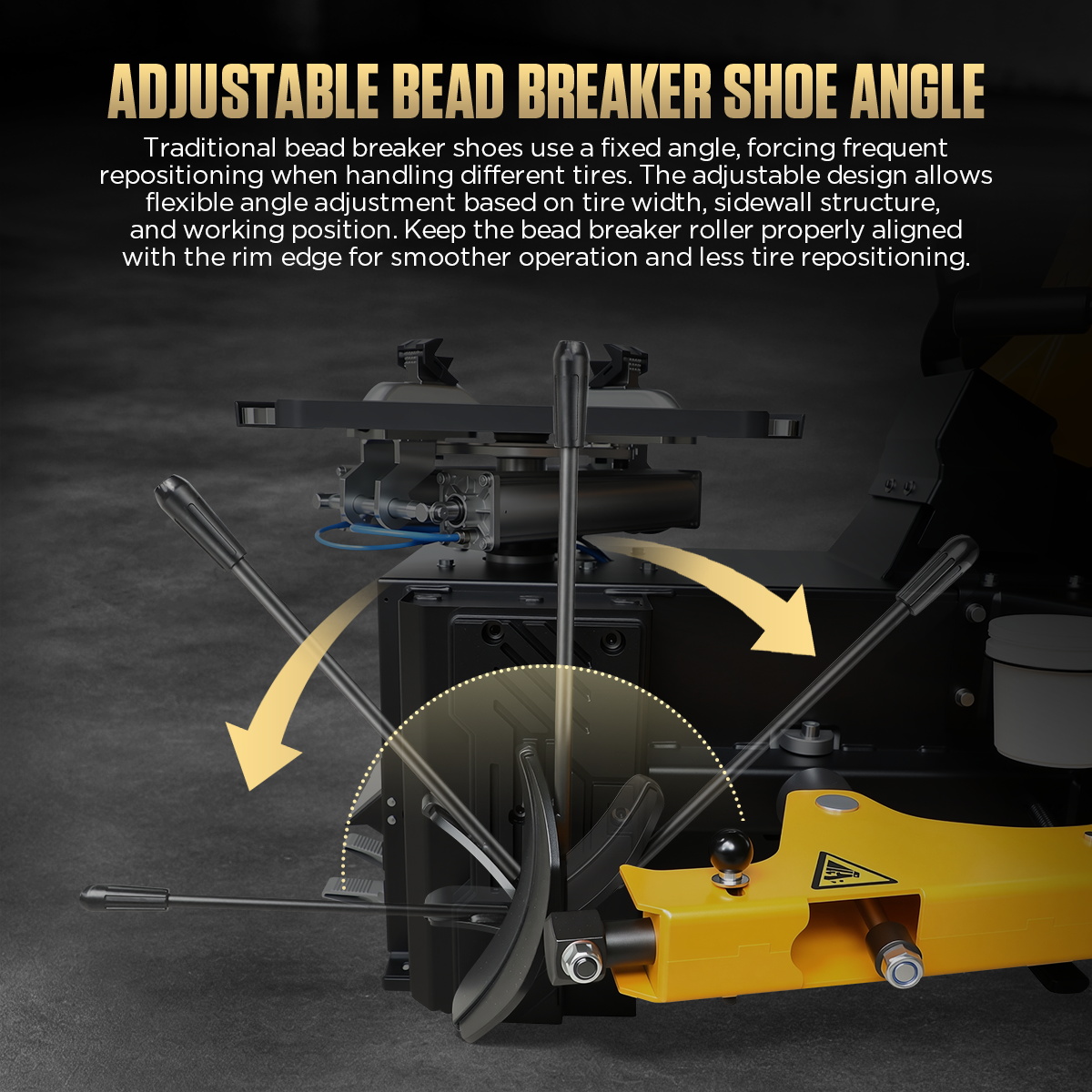

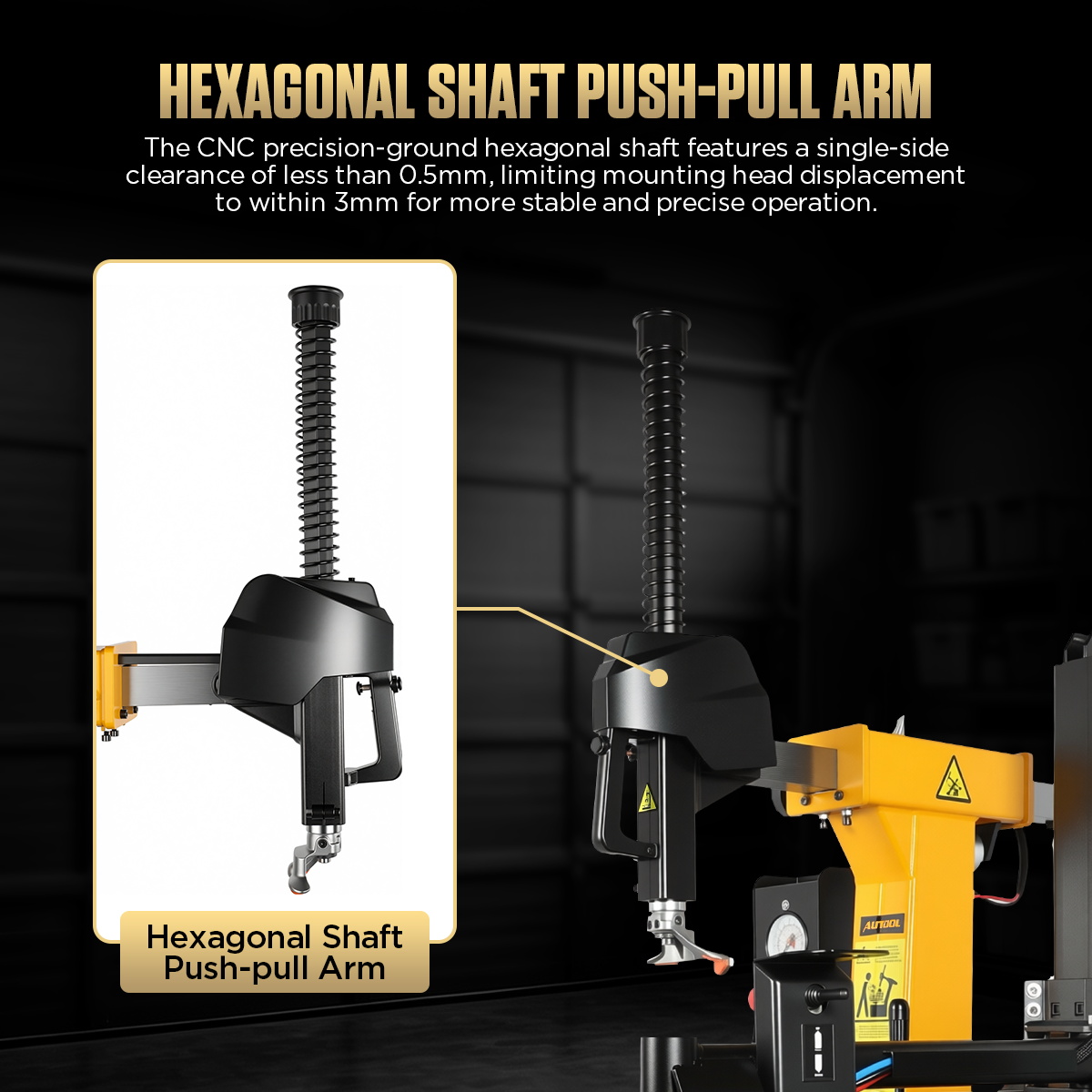

Features： The right-side pneumatic assist arm integrates tire lifting, bead pressing, bead breaking, and positioning functions, reducing manual pressing effort and excessive prying during operation. 26-inch fine-adjustment clamping chuck with rim protection padsprovides more precise positioning while reducing the risk of incorrect clamping and rim scratches. 2500 kg (5511.6 lb) high-force bead breaker cylinder and widened opening angle design enable fast separation of SUV tires, passenger car stiff tires, and run-flat tire beads. CNC precision-ground square shaft controls single-side fitting clearance within 0.5 mm (0.02 in), reducing mounting head movement and offset. Adjustable bead breaker shovel angle, fully welded machine body, explosion-proof air-water separator, and side-mounted tool storage provide both stability and efficiency. Supports TPMS tire service procedures; operators should still follow sensor positioning requirements and tire manufacturer service procedures during operation. The Only Key Difference Between TCA505 and TCA506

Comparison Item	TCA505	TCA506
Independent Bead Blasting System	Not equipped	Equipped
Core Capability	Tire mounting/demounting + assist arm	Tire mounting/demounting + assist arm + rapid bead seating
Recommended Applications	Regular and high-difficulty tire mounting/demounting operations	Workshops frequently dealing with difficult bead sealing or tires that are hard to seat with standard inflation
