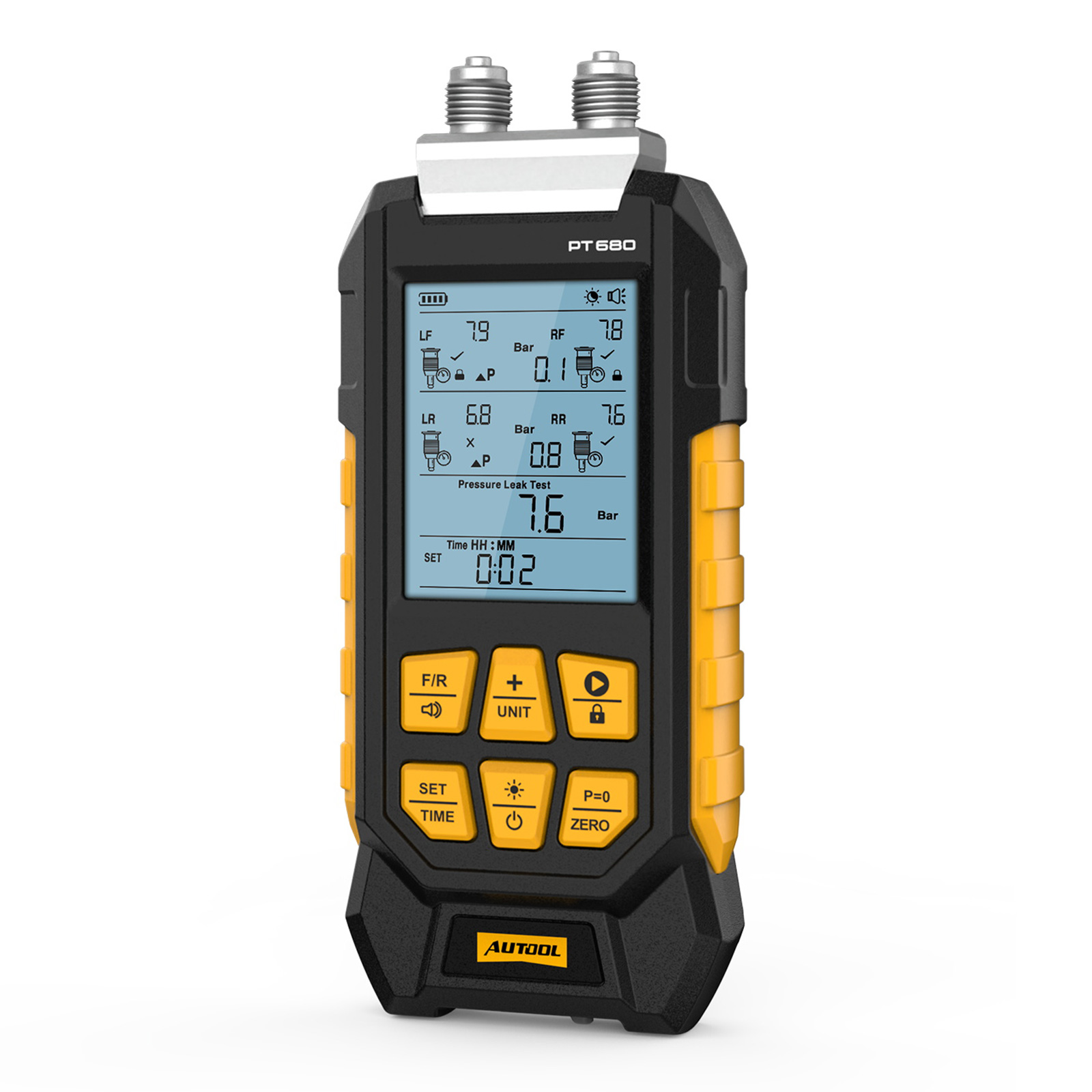

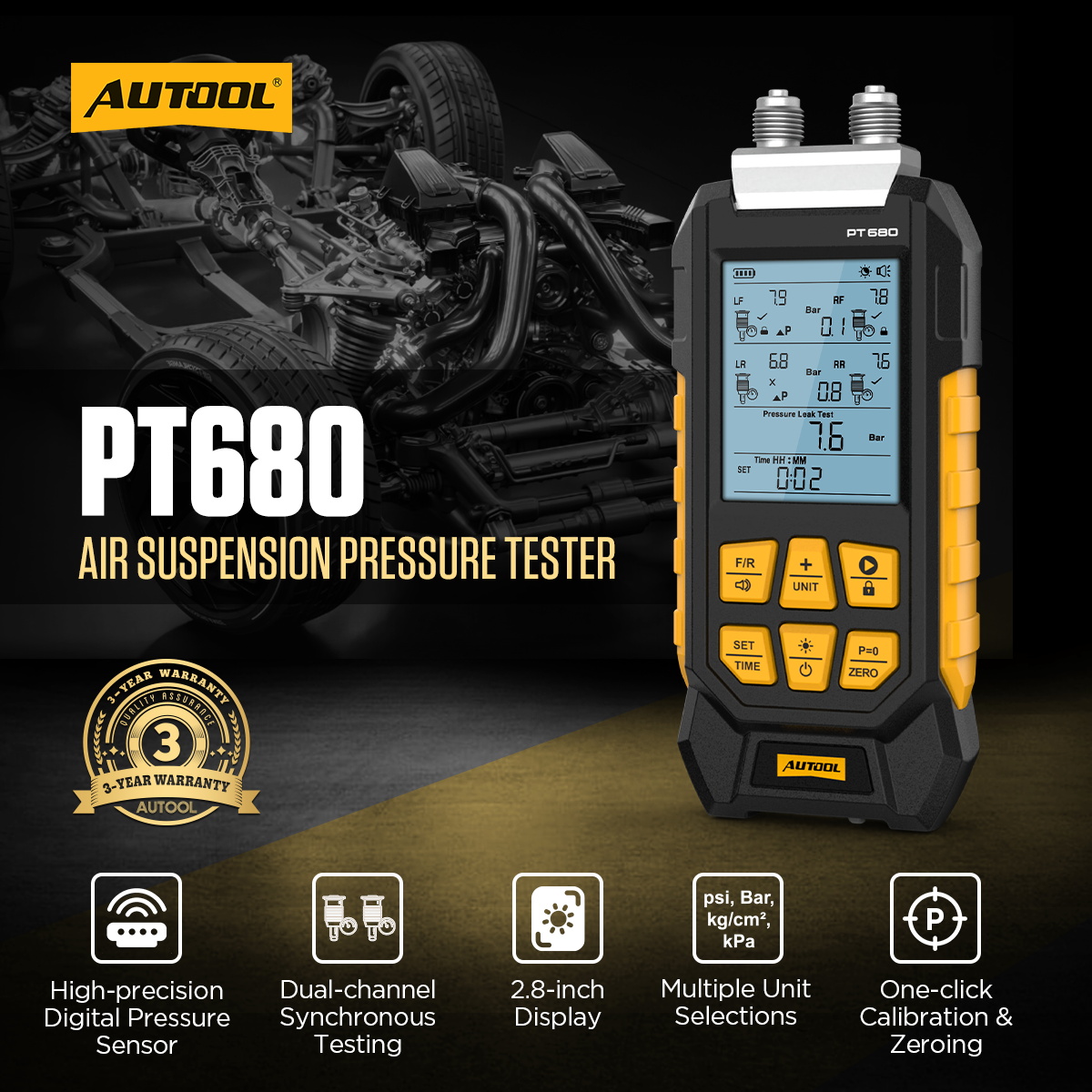

PT680 Air Suspension Pressure Tester

The AUTOOL PT680 is a professional maintenance and repair device specifically designed to test air suspension system leaks in vehicles. It is suitable for various models, including Audi, Volkswagen, BMW, Mercedes-Benz, Porsche, Cayenne, and Land Rover. It is equipped with a high-precision digital pressure sensor, with a measurement accuracy of ±1% FS. Compared to traditional repair methods, the PT680 can simultaneously test the left and right air suspension of a vehicle and calculate the pressure differential. Through its pressure leakage test mode, it continuously monitors pressure changes in the air suspension system, helping you quickly locate any leaks in the air springs, pipes, or connections within the air suspension system.

Request technical details ↗Inquire about pricing View specifications

U.S. CUSTOMER POLICIESWarranty Returns Terms of Sale Privacy

AUTOOL PT680 Air Suspension Pressure Tester Features

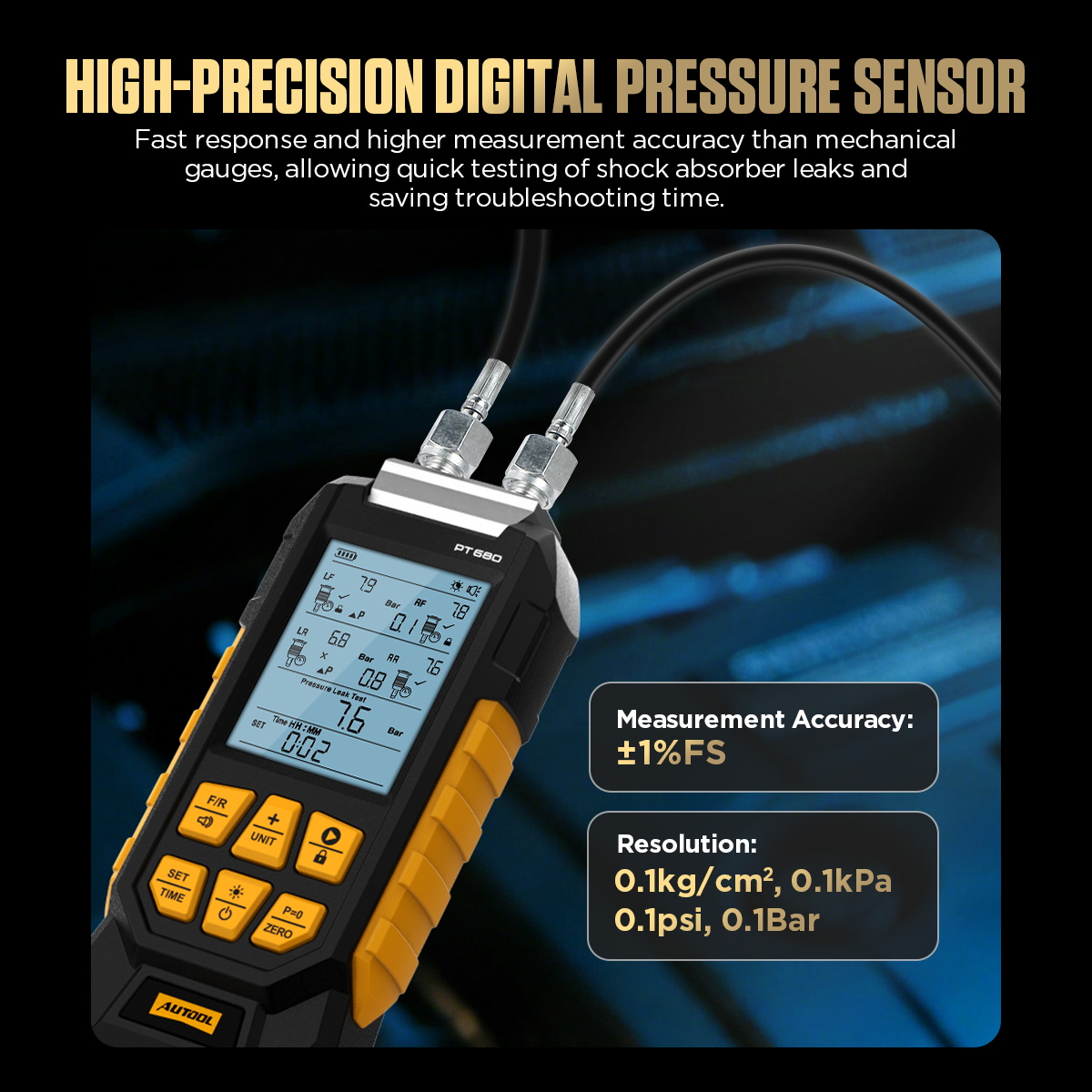

High-Precision Digital Pressure Sensor: Accurately measures air suspension system pressure, helping quickly locate leaks in air springs, pipes, or connections.

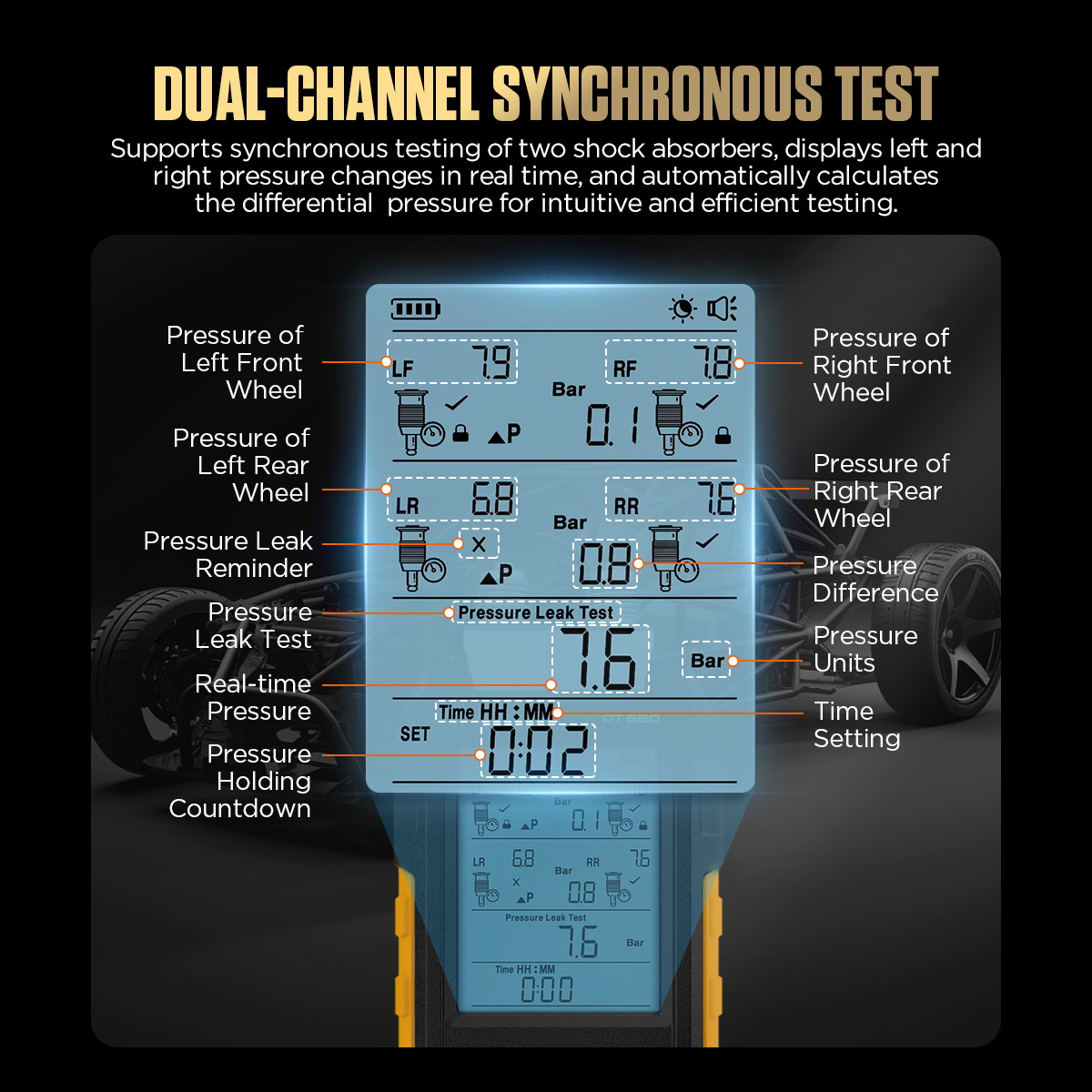

Dual-Channel Synchronous Testing: Simultaneously tests the left and right air suspension pressures and calculates the pressure difference in real-time, speeding up diagnostics.

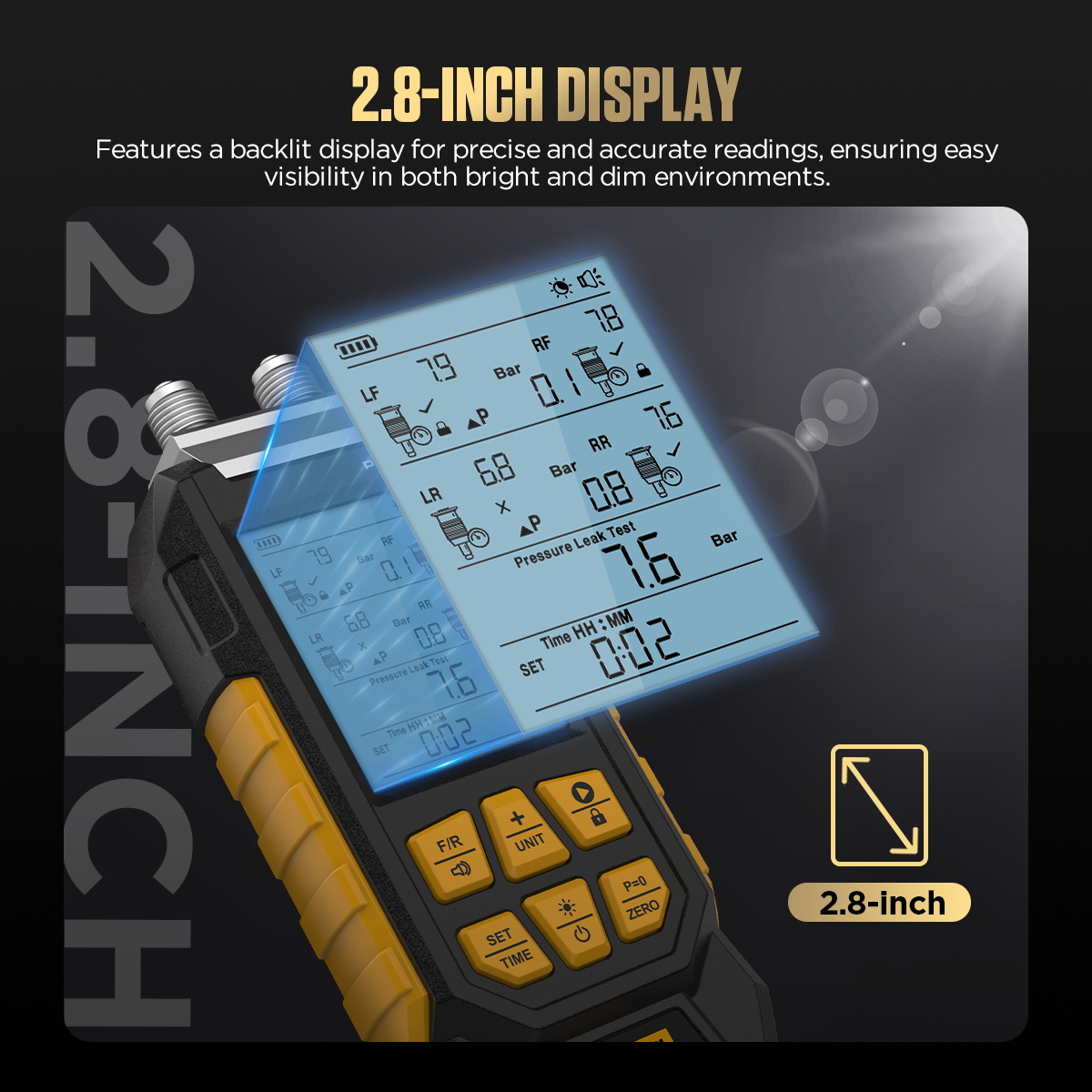

Clear Backlit Display: Equipped with a backlit screen for clear readings in both bright and low-light environments, improving work convenience.

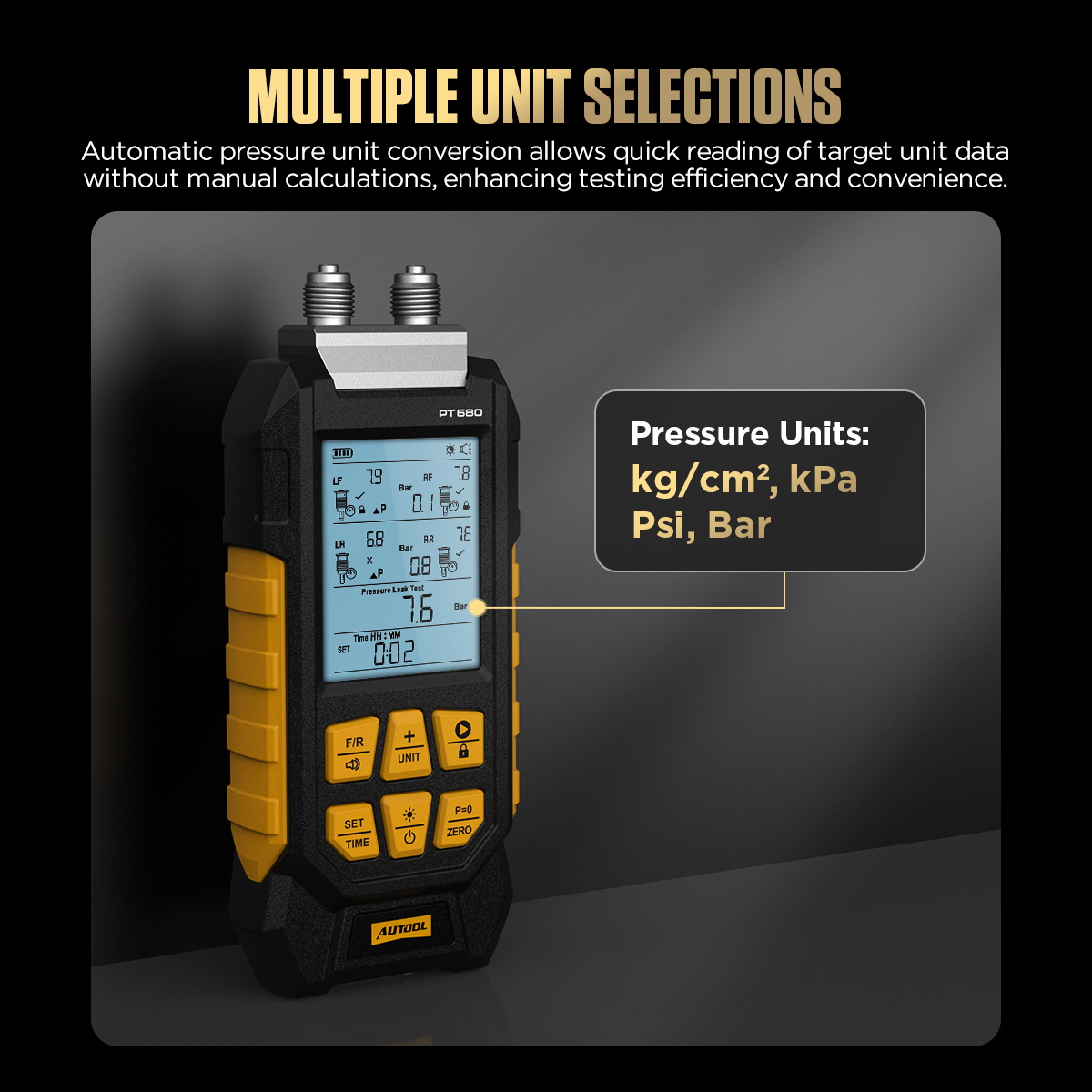

Multiple Unit Switching: Supports easy switching between kg/cm², kPa, and bar units to meet different measurement needs.

One-Button Calibration & Zeroing: Allows quick calibration and zeroing to ensure accurate measurements and simplify operation.

Durable Design & Quick Connect: Quick-connect fittings are pressure-sealed and durable, suitable for professional repair environments.

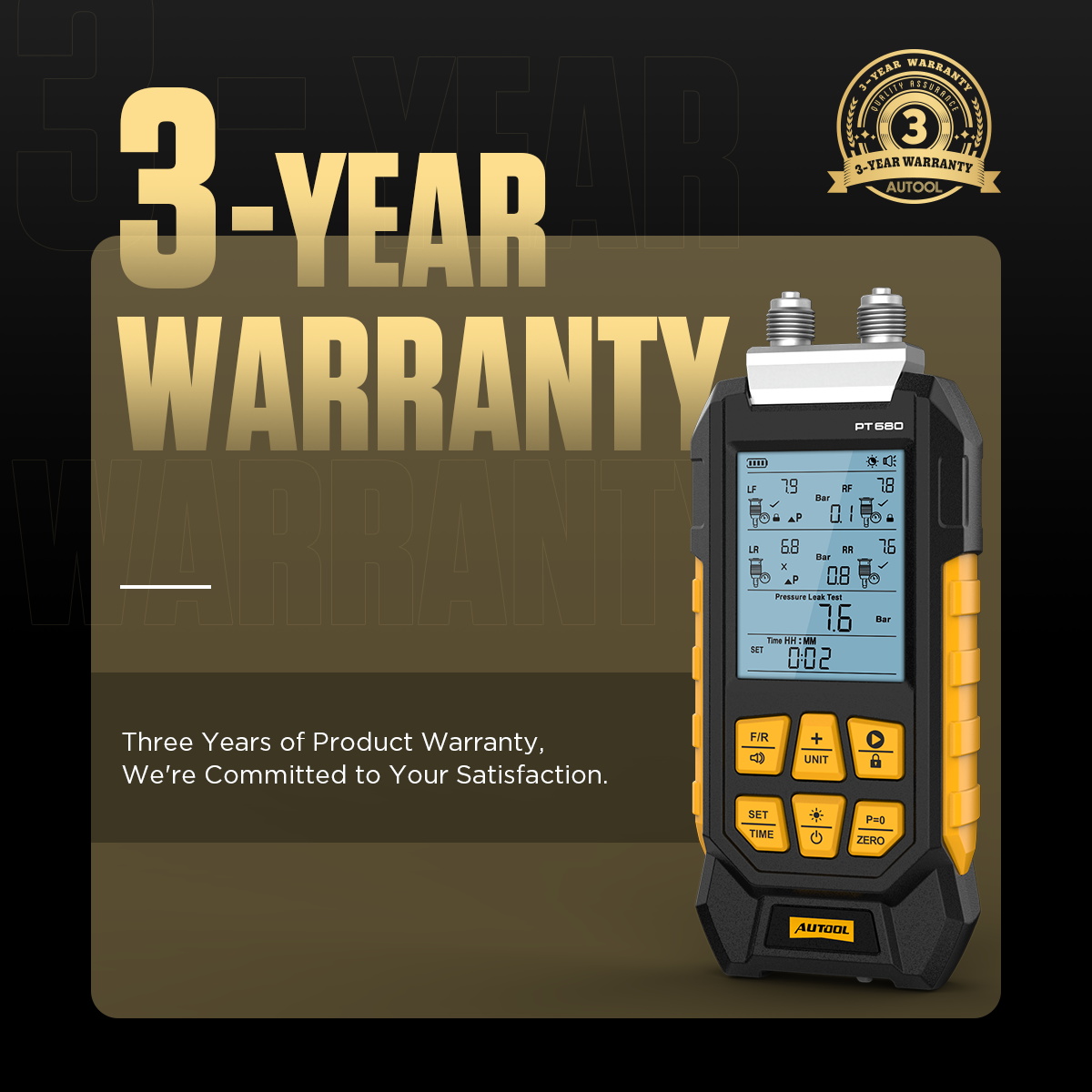

Three-year warranty: For damages caused by non-human factors, AUTOOL promises to provide free replacement parts within three years. If you have any requests, please feel free to contact us, and we will respond promptly within 24 hours.

PT680
Operating Voltage	4 × 1.5V AAA batteries
Measurement Accuracy	±1% FS
Measurement Range	0–20 bar (290.1 psi)
Measurement Units	psi, Bar, kg/cm², kPa
Resolution	0.1 psi, 0.1 bar (1.5 psi), 0.1 kg (0.2 lb)/cm², 0.1 kPa (0 psi)
Operating Temperature	-10°C (14°F) ~ 60°C (140°F)
