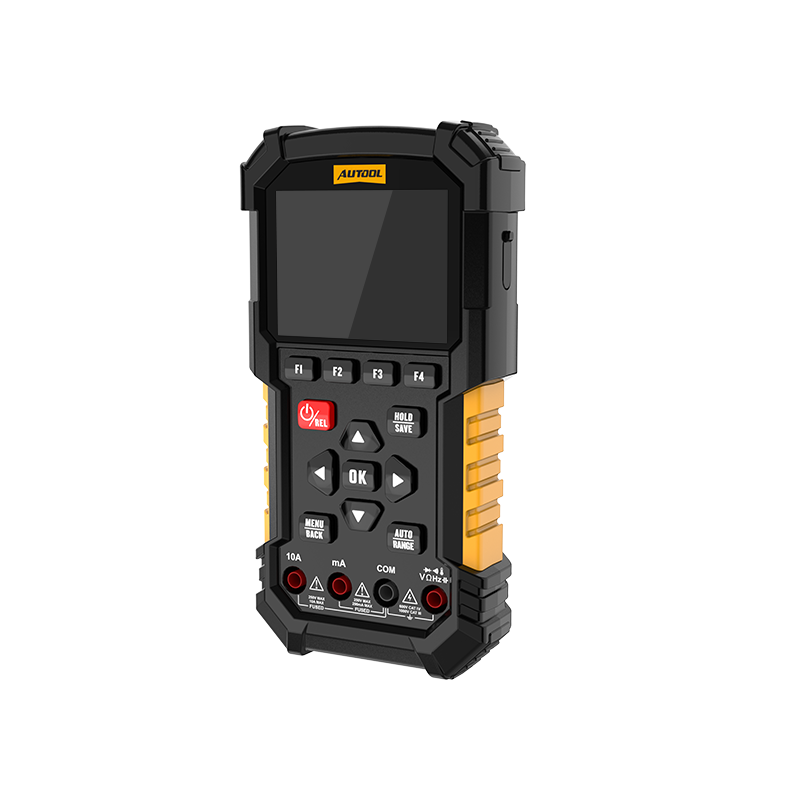

DM306 Handheld Oscilloscope Multimeter

AUTOOL DM306 Handheld Oscilloscope Multimeter Features Hardware & Industrial Design Portable Industrial Design: The handheld body is compact, portable, and easy to operate, making it ideal for on-site and outdoor measurement tasks. 3.2-Inch IPS Full-View Color Display: The 3.2-inch IPS color display provides a wide viewing angle, ensuring waveforms and measurement readings remain clear and easy to read. 25,000-Count High-Resolution Multimeter: The digital multimeter provides 25,000-count resolution, delivering higher-resolution measurement readings for more precise testing. Type-C Charging: Supports two charging methods via an adapter or a computer's USB port. Oscilloscope Core Capabilities 10MHz Dual-Channel Oscilloscope Comprehensive Waveform Adjustment -Vertical System: Adjustable voltage ranges with support for X1/X10 probe attenuation matching. -Horizontal Time Base: Adjustable time base. Low-speed signals automatically enter Roll Mode for extended observation of slowly changing waveforms. Advanced Trigger System Supports Auto, Normal, and Single trigger modes. Rising-edge and falling-edge triggering with freely adjustable trigger level and trigger source (CH1/CH2). Rich Measurement Functions -Automatic Measurements: Peak, Maximum, Minimum, Peak-to-Peak, RMS, Frequency, Duty Cycle, and Period. Up to 4 parameters can be displayed per channel. -Cursor Measurements: Horizontal, vertical, and combined cursors for measuring voltage differences and time differences. -XY Mode: For phase and frequency-ratio comparison. -Adjustable Persistence: Minimum / 500ms / 1s / 10s / Infinite persistence for observing waveform changes and drift. Waveform Storage & Export -Long-press the button to save waveform screenshots for on-device viewing. -Connect to a computer via Type-C to access the storage folder and export waveforms for PC-based analysis. Practical Auxiliary Functions -AUTO Setup: One-touch adaptation to unknown waveforms. -Baseline Self-Calibration: Eliminates baseline offset caused by temperature changes or prolonged storage. -Display & Power Management: Configurable backlight brightness, automatic backlight shutoff, and automatic power-off for optimal visibility and battery life. -Multi-Language Support: Chinese, English, French, German, Russian, Spanish, Dutch, Turkish, and Portuguese. Factory reset supported. Probe Compensation & High-Voltage Safety Probe compensation detection mechanism ensures measurement accuracy, with comprehensive high-voltage safety warnings. Built-in Signal Generator Six Output Waveforms: Outputs 6 waveform types: Sine Wave, Square Wave, Triangle Wave, Half-Wave, Full-Wave, and Sawtooth Wave. Adjustable Output Parameters: Output amplitude, frequency, and duty cycle can be independently configured. Supports on/off output control, with a built-in waveform preview window on the screen. Common Ground with Oscilloscope: Shares a common ground with the oscilloscope, making it suitable for equipment debugging and circuit testing. Digital Multimeter Comprehensive Measurement Functions: Measures AC/DC Voltage, AC/DC Current, Resistance, Continuity with Audible Buzzer, Diode, Capacitance, and VFC AC Measurement with Interference Rejection. Auto/Manual Range Selection: Supports both automatic and manual range switching. Features a data HOLD function that simultaneously displays MAX (Maximum Value), MIN (Minimum Value), and AVG (Average Value). REL Relative Measurement: Supports REL relative value measurement. The AC range also provides frequency readings. Dedicated 10A and mA current input terminals are provided with fuse protection. High-Definition Digital Display: Provides clear digital readings with flexible automatic or manual range selection.
